Courtesy of BMR

Thonotosassa,FL  – Correct the suspension geometry in your S197 Mustang with Control Arm Relocation Brackets from BMR Suspension.  Manufactured from 3/16” CNC laser cut steel plates, these bolt-in brackets provide three new mounting locations for correcting your rear suspensions’ anti-squat characteristics.

Additionally, this newly designed bracket captures existing factory holes in three locations per side, preventing counter-rotation and eliminating the necessity for welding in all but extreme applications.  The BMR Control Arm Relocation Brackets (CAB005) correct the vehicles instantaneous center, improving drag strip traction and handling traction during corner exiting.  Installation time is only 2-3 hours.  Available in black hammertone or red powdercoat.

 To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension,12581 US Highway 301 North, Thonotosassa,FL 33592, 813-986-9302, Fax: 813-986-8055.

Courtesy of BMR

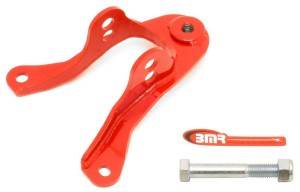

Thonotosassa, FL – Stabilize the upper control arm in your 2011-2012 Mustang with an Upper Control Arm Mount from BMR Suspension.  Superiorto the factory 1/8” stamped steel mount, the BMR mount is constructed from heavy duty 1/4” CNC laser cut steel plates and features dual mounting holes for adjusting instant center.

The BMR Upper Control Arm Mount (UCM002) improves launch consistency and increases weight transfer under aggressive driving conditions.  Installation time is only 2-3 hours.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension,12581 US Highway 301 North, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Courtesy of BMR

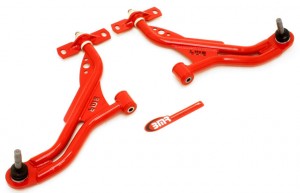

Thonotosassa, FL – Correct the suspension geometry on your lowered S197 Mustang with a set of Handling A-arms from BMR Suspension. Based on our well proven traditional A-arm design, these Handling A-arms feature ¾” taller ball joints to raise the roll center height on lowered vehicles for improved handling. The BMR Handling A-arms are constructed from heavy duty 1.25” DOM tubing and feature laser cut, double-gusseted reinforcement plates.

The non-adjustable A-arms (AA023) include a combination of low-deflection, internally-fluted, polyurethane bushings and fluted, greasable, Delrin bushings. The adjustable A-arms (AA024) include Delrin bushings and Teflon-lined XR series spherical rod ends with stainless spacers. The result is a high quality tubular A-arm that minimizes bushing deflection, reduces unsprung weight by up to 11 pounds, and improves handling by reducing body roll. Installation time is only 3 hours. Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 N. US Highway 301, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Courtesy of BMR

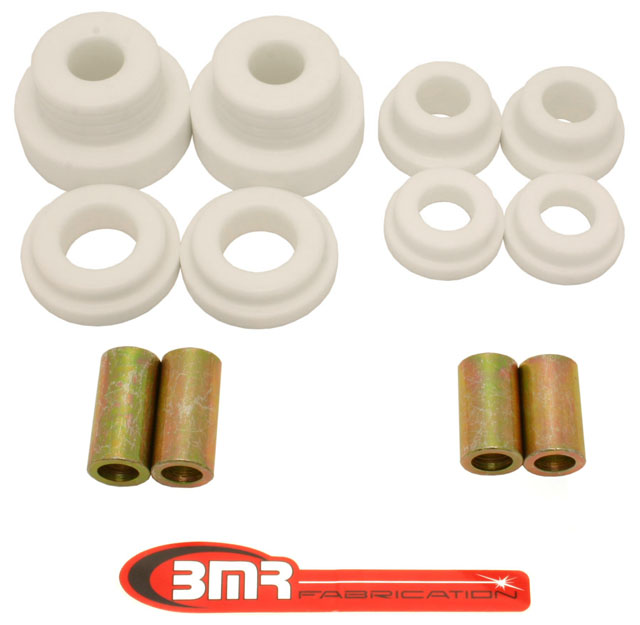

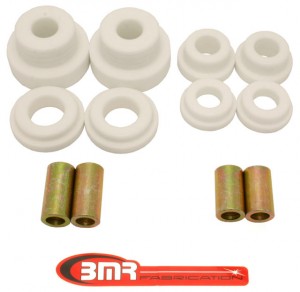

Thonotosassa, FL – Eliminate rear cradle movement in your 2010-2011 Camaro with a Delrin Rear Cradle Bushing Kit from BMR Suspension.  These bushings are CNC-machined from Delrin which is known for its high stiffness, low friction and excellent dimensional stability.  This product removes all movement between the rear cradle and chassis, eliminating the bushing deflection that occurs during acceleration, cornering, and braking.

The BMR Delrin Rear Cradle Bushing Kit (BK027) greatly increases the rigidity and stability of the chassis to provide maximum control and consistency necessary for any form of competition or high performance street driving.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 US Highway 301 North, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Courtesy of BMR

Thonotosassa, FL – Protect your 2011-2012 Mustang Automatic while complying with NHRA safety rules with a Driveshaft Safety Loop from BMR Suspension. Constructed from NHRA legal 1/4” steel plate, the Driveshaft Safety Loop is cheap insurance to protect your investment and provide peace-of-mind whether you are at the track or on the street.

The BMR Driveshaft Safety Loop (DSL017) bolts-on by utilizing the OE mounting holes from the factory transmission cross-member.   Provided with Grade 8 hardware.  Installation time is only 1 hour.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 N. US Highway 301, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price (DSL017) : $139.95

Courtesy of BMR

Thonotosassa, FL – Gain superior handling and greater adjustability in your ’74-‘81 Camaro/Firebird with a Torque Arm Suspension from BMR Suspension.  This complete kit comes with an adjustable torque arm, Watts Link, torque arm cross-member, coil-over conversion cross-member, lower control arms, and all necessary mounting hardware.

The torque arm is equipped with a Delrin-bushed, telescoping front mount for bind-free axle articulation and a pinion-angle adjustable rear mount.  The Watts link centers the rear axle housing even if the suspension is fully extended or compressed.  The BMR Torque Arm Suspension (TAS007, TAS008, TAS009) is a true bolt-in kit that can be installed without cutting or welding the floor or frame.

The suspension can be unbolted and the car can easily be returned to stock if desired.  Applications for 12 bolt (TAS007), Ford 9” (TAS008), and 10 bolt (TAS009).  The Ford 9” version includes a new Strange rear axle housing.  Coilover shocks sold separately.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 US Highway 301 North, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price (TAS007) : $2299.95
Retail Price (TAS008) : $2899.95
Retail Price (TAS009) : $2299.95

Courtesy of BMR

Thonotosassa, FL – Minimize wheel-hop and reduce rear cradle movement in your 2010-2012 Camaro with a Rear Cradle Bushing Kit from BMR Suspension.  Manufactured from low-deflection polyurethane, this kit includes 95 durometer rear differential bushings (BK029) and full cradle bushings (BK024).

The BMR Rear Cradle Bushing Kit (BK030) minimizes movement and provides additional rigidity for the differential and rear suspension which ensures maximum power transmission to the wheels.  The result is better handling and more consistent launches without significantly increasing noise, vibration, or harmonics.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 US Highway 301 North, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price (BK030) : $309.95

Courtesy of BMR

Thonotosassa, FL – Precisely locate the rear axle housing in your 2005-2011 Mustang chassis with a Poly/Rod Adjustable Panhard Rod from BMR Suspension.  Manufactured from heavy wall 1.25” DOM tubing and a ¾” diameter, chrome-moly double adjuster, this panhard rod utilizes a high-durometer polyurethane bushing on one side while using a chrome moly ¾” QA1 rod end on the other side.

The BMR Poly/Rod Adjustable Panhard Rod (PHR013) allows bind-free rear end articulation without compromising sound or ride quality.  Additionally, this design allows on-car adjustability to easily locate the rear axle housing on lowered vehicles.  Installation time is less than 1 hour.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 N. US Highway 301, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price (PHR013) : $169.95

Courtesy of BMR

Thonotosassa, FL – Correct lost camber adjustability, reduce suspension deflection, and increase rear cornering stability with a set of Lower Control Arms from BMR Suspension.  Superior to the factory stamped steel arm, the BMR Control Arms are constructed from heavy duty 2” square tubing and internally-gusseted laser-cut mounting plates.

The BMR Lower Control Arms (TCA028) feature low-deflection polyurethane bushings, reinforced sway bar mounts, and a shortened overall length to correct camber on lowered vehicles.  Installation time is only 3-4 hours.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 US Highway 301 North, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price : $259.95

Courtesy of BMR

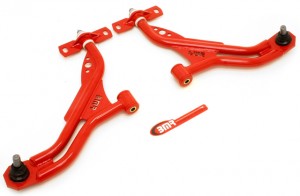

Thonotosassa, FL – Improve handling response and reduce weight in your 2010-2011 S197 Mustang with a set of Tubular A-arms from BMR Suspension.  The BMR Tubular A-arms are constructed from heavy duty 1.25” DOM tubing and feature laser cut, double-gusseted reinforcement plates.

The non-adjustable A-arms (AA021) include a combination of low-deflection, internally-fluted, polyurethane bushings and fluted, greasable, Delrin bushings.  The adjustable A-arms (AA022) include Delrin bushings and Teflon-lined XR series spherical rod ends with stainless spacers.  The result is a high quality tubular A-arm that minimizes bushing deflection and reduces unsprung weight by up to 11 pounds.  Installation time is only 3 hours.  Available in black hammertone or red powdercoat.

To preview all of BMR’s high-performance suspension parts, please visit www.bmrsuspension.com, email sales@bmrsuspension.com, or contact them at BMR Suspension, 12581 N. US Highway 301, Thonotosassa, FL 33592, 813-986-9302, Fax: 813-986-8055.

Retail Price (AA021) : $449.95 (pictured)
Retail Price (AA022) : $579.95
